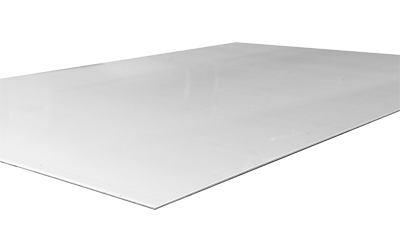

Export A516 Grade 70 Pressure Vessel Steel Plate
A516 steel plate, also known as PVQ516 steel plate, is carbon steel with specifications for pressure vessel plates and moderate or lower temperature service. A516 steel plate is intended primarily for service in welded pressure vessels where improved notch toughness is important.
|
Item |
Pressure Vessel Steel Plate |
|
Material |
A516 Grade 60 Steel Plate , A516 Grade 65 Steel Plate , A516 Grade 70 Steel Plate, ASTM A516 GRADE 60 65 70 Plates Trippled Certified , ASTM A516 GRADE 60 70 Plates Dual Certified , A537 Class 1 Steel Plate, A537 Class 2 Steel Plate |
|
Thickness |
5mm to 150mm |
|
Width |
1,500mm to 2,500mm |
|
Length |
6,000mm to 12,000mm |
|
Export to |
Iran, Saudi Arabia, United Arab Emirates, Singapore, Malaysia |
A516 Grade 70 Plate Mechanical Property
|
Grade |
Thickness |
Yield |
Tensile |
Elongation |
|
A516 grade 70 |
mm |
Min Mpa |
Mpa |
Min % |
|
6-40 |
260 |
485-620 |
21% |
|
|
40-100 |
260 |
485-620 |
17% |
A516 Grade 70 Steel Mechanical Property
| Grade |
The Element Max (%) |
||||
|
C |
Si |
Mn |
P |
S |
|
|
A516 grade 70 |
0.27-0.31 |
0.13-0.45 |
0.79-1.30 |
0.035 |
0.035 |
A516 Grade 70 Steel Application:
- Fertilizers Industry
- Aerospace Industry
- Nuclear Power Plant Industry
- Chemical Industry
- Oil & Gas Industry
- Refineries Industry
- Petrochemical Industry
- Paper Industry
Katalor also is manufacture, suppliers, exporters and stockists of Chrome Moly Steel Plate, Boiler Plate, HIC plate, Pressure Vessel Steel plate, Abrasion Resistant Steel Plates, Offshore & Structural Steel Plate, Quenched & Tempered Steel plate , High Nickel Alloy plate, Stainless Steel plate,Duplex Stainless Steel Plate, 16MO3 Steel Plate and so on.
