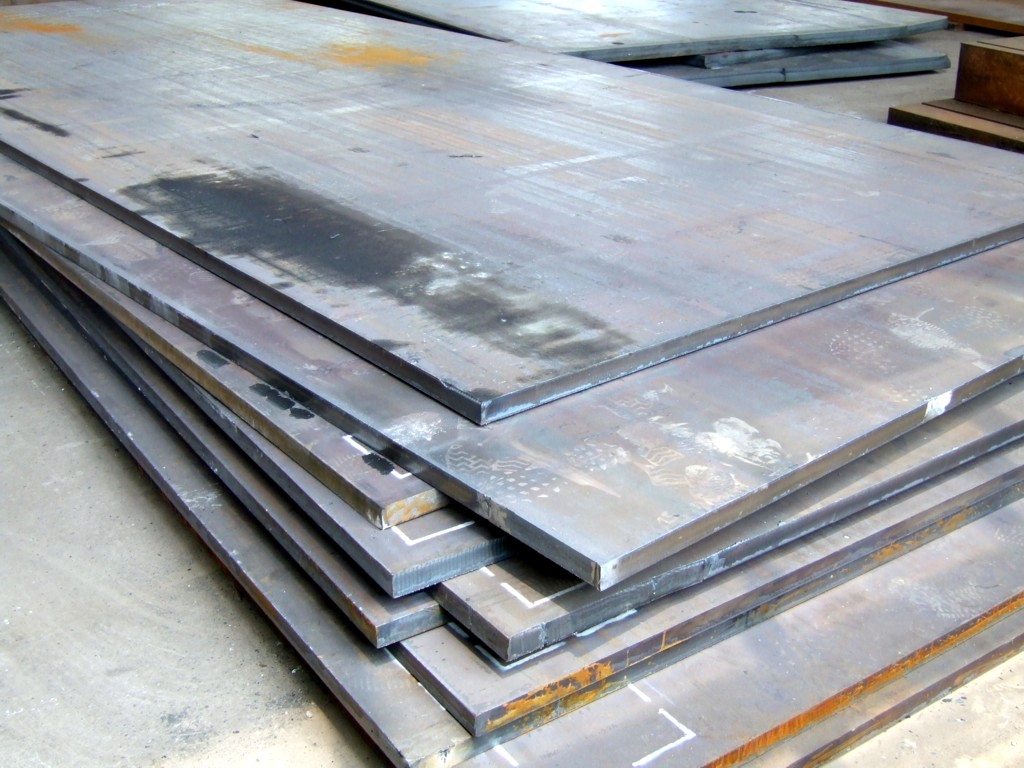

ABS AH36 Shipbuilding Steel Plate,ABS AH36 Steel Properties
The shipbuilding steel plate ABS AH36 is the common tensile strength steel. ABS AH36 has good toughness properties and higher strength. Katalor is specialized in supplying ABS AH36 high strength steel plate ,For more information of ABS Grade AH36 steel plate, please check them in following:
ABS AH36 Shipbuilding Steel Plate Application:
ABS AH36 Steel used primarily in shipbuilding repair and other marine applications. The high strength characteristics service the structural requirements of ships, barges, and other types of marine equipment.
ABS AH36 Shipbuilding Steel Plate Service Features:
1. Accurate quotation, to reduce purchasing cost for you.
2. Timely communication, allowing you to monitor the entire production process and the progress
3. Superior quality, letting you go through the inspection of steel and supervise the quality of the finished products
4. Considerable transportation ,helping you to reduce the transportation cost and let you know the circumstance of the transport at any time.
5. Insurance of quality, making you get the original factory warranty for you as soon as possible
ABS AH36 Chemical Composition:
ABS AH36 High Strength Chemical Composition |
|||||||
Grade |
The Element Max (%) |
||||||
C |
Si |
Mn |
P |
S |
Al |
N |
|
ABS AH36 |
0.18 |
0.1-0.50 |
0.90-1.6 |
0.035 |
0.035 |
0.015 |
|
Nb |
V |
Ti |
Cu |
Cr |
Ni |
Mo |
|
0.02-0.05 |
0.05-0.10 |
0.02 |
0.35 |
0.2 |
0.4 |
0.08 |
ABS AH36 Mechanical Property:
Mechanical Property of AB/AH36 high strength |
|||||||
Grade |
Thickness |
Yield |
Tensile Strength |
Elongation |
Charpy V Notch Impact Test |
||
Degree |
Value 1 |
Value 2 |
|||||
AB/AH36 |
mm |
Min Mpa |
Mpa |
Min % |
0 |
J |
J |
t≤50 |
355 |
490-620 |
21% |
24 |
34 |
||
50<t≤70 |
355 |
490-620 |
21% |
27 |
41 |
||
70<t≤100 |
355 |
490-620 |
21% |
34 |
50 |
||
Note: Value 1 is transverse impact test, Value 2 is longitudinal |
ABS AH36 Steel Specification
Thickness: 6mm to 240mm,
Width: 1400mm to 4020mm
Length: 3000mm to 12000mm.
Meanwhile, we also can provide any size if the customer need.
UT test: S0E1, S1E2, S2E3 and other standard which be required by customers.
ABS AH36 Equivalent:
Equivalent steel grade of ABS AH36 |
|||||||
DNV |
GL |
LR |
BV |
CCS |
NK |
KR |
RINA |
NV A36 |
GL-A36 |
LR/AH36 |
BV/AH36 |
CCS/A36 |
NK A36 |
KR A36 |
RI/A36 |
Katalor is the professional Chinese ABS AH36 Shipbuilding Steel Plate supplier. if you need any offer or if you want to know t he ABS AH36 Shipbuilding Steel Plate e price and any other information about price, please be free to contact us by email:[email protected]
