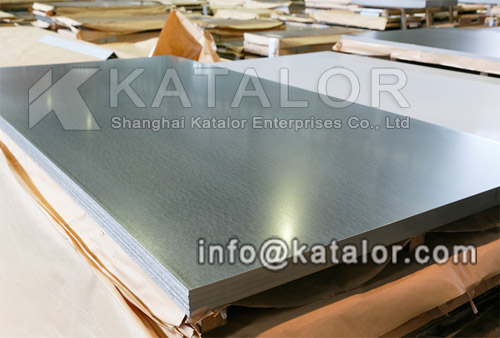

EN 10025-4 S460ML Structural Steel Plate
S460ML Grade is a technical delivery conditions for thermo mechanical rolled weld able fine grain structural steels. S460ML Structural Steel Plate shall be suitable for welding, and general requirements for arc welding. S460ML steel plate is also suitability for hot-dip zinc-coating, this requirements shall be agreed between manufacturer and purchaser.
S460ML Chemical composition
|
Element |
S460MLMax % |
Element |
S460ML max % |
|
C |
0.18 |
AL |
0.015 min |
|
Si |
0.65 |
TI |
0.06 |
|
Mn |
1.80 |
CR |
0.35 |
|
P |
0.030 |
NI |
0.85 |
|
S |
0.025 |
Mo |
0.23 |
|
Nb |
0.06 |
Cu |
0.60 |
|
V |
0.14 |
N |
0.027 |
S460ML Mechanical properties
|
Grade |
Thickness |
Yield Strength |
Tensile Strength |
Elongation |
Impact Energy |
|
(mm) |
MPa (min) |
MPa |
% (min) |
(KV J) (min) |
|
|
|
|
|
|
-50 degree |
|
|
S460ML |
≤ 16 |
460 |
540-720 |
17 |
27 |
|
16> to ≤40 |
440 |
540-720 |
17 |
27 |
|
|
40> to ≤63 |
430 |
530-710 |
17 |
27 |
|
|
63> to ≤80 |
410 |
510-690 |
17 |
27 |
|
|
80> to ≤100 |
400 |
500-680 |
17 |
27 |
|
|
100> to ≤120 |
385 |
490-660 |
17 |
27 |
S460ML Steel Technical Requirements Additional Services:
1, Low temperature impacting test
2, Rolling under standard NACE MR-0175 (HIC+SSCC)
3, Ultrasonic test under EN 10160,ASTM A435,A577,A578
4, Issued Original Mill test certificate under EN 10204 FORMAT 3.1/3.2
5,Shot blasting and Painting, Cutting and welding as per end user’s demands
EN 10025-4 S460ML Specification
Steel Standard: EN 10025-4
Rolling Type: Structural steel plate, low alloy steel plate
Thickness: 6mm-350mm
Width: 1500mm-4000mm
Length: 3000mm-12000mm
We can supply any size based on customer's requirements.
Heat Treatment: Thermo-Mechanical Control Process (TMCP)
Shanghai Katalor Enterprises Co., Ltd is a big complex combined steel stockist whose business related with trade, processing, storage and transportation. we are specialized in supplying S460ML Structural Steel Plate. We have the good quality and advanced equipment, our products meet the state standard, and also available for customers' requirement. If you have any need of EN 10025-4 S460ML, please do not hesitate to contact us by email [email protected], we can do our best to help you!
