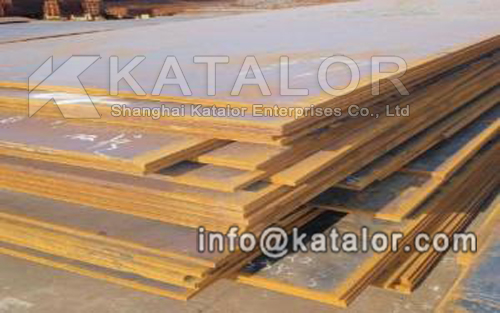

EN 10028 P355NL1 Pressure Vessel and Boiler Steel Plate Steel Grade
P355NL1 is the low temperature grade steel, belonging to the EU standard. EN 10028 P355NL1 steel plate is used in oil, chemical, power station, boiler and other industries for the production of reactors.
The Main Application of EN 10028 P355NL1
EN 10028 P355NL1 steel is mainly used in heat ex-changer, separators, spherical tanks, oil and gas tank, liquefied gas tank, nuclear reactor shell, boiler drum, petroleum gas cylinders, high pressure water pipes, turbine volute and other equipment and components.
Grade |
The Element Max (%) |
||||||
C |
Si |
Mn |
P |
S |
Al(min) |
N |
|
P355NL1 |
0.18 |
0.50 |
0.9-1.70 |
0.03 |
0.020 |
|
0.02 |
Cr |
Cu |
Mo |
Nb |
Ni |
Ti |
V |
|
0.30 |
0.30 |
0.08 |
0.005 |
0.50 |
0.03 |
0.10 |
Carbon Equivalent: Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%
Grade |
Thickness |
Yield |
Tensile |
Elongation |
Impact Energy(KV J) min |
||
P355NL1 |
mm |
Min Mpa |
Mpa |
Min % |
-20° |
0° |
+20° |
≤ 16 |
355 |
490-630 |
22 |
47 |
55 |
63 |
|
16> to ≤35 |
355 |
490-630 |
22 |
47 |
55 |
63 |
|
35> to ≤50 |
345 |
490-630 |
22 |
47 |
55 |
63 |
|
50> to ≤70 |
325 |
490-630 |
22 |
47 |
55 |
63 |
|
70> to ≤100 |
315 |
470-610 |
21 |
47 |
55 |
63 |
|
100> to ≤150 |
295 |
450-590 |
21 |
47 |
55 |
63 |
P355NL1 Pressure vessel Steel Additional Condition
UT(Ultrasonic examination),AR(As Hot Rolled only),TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test(such as SGS Test),Coated or Shot Blasting and Painting.
Shanghai Katalor Enterprises Co., Ltd is specialized in supplying EN 10028 P355NL1 Boiler Steel Plate. Besides that, Shanghai Katalor Enterprises Co., Ltd is also a manufacture, so we could promise the delivery time and the competitive price compared with other company. We sincerely hope new and regular customers come to visit our mill and inquiry P355NL1 Pressure vessel and boiler steel plate from Katalor.
