EN10028-3 P460NL2 pressure vessel Tensilmie
P460NL2, so called for having a minimum yield strength of 460 MPa, is is a high quality pressure vessel steel grade for use in boiler and pressure vessel fabrication. It is a normalised fine grain steel with good weldability characteristics.
P460NL2 Chemical Composition
Grade |
The Element Max (%) |
||||||
C |
Si |
Mn |
P |
S |
Al(min) |
N |
|
P460NL2 |
0.20 |
0.60 |
1.0-1.70 |
0.025 |
0.015 |
聽 |
0.025 |
Cr |
Cu |
Mo |
Nb |
Ni |
Ti |
V |
|
0.30 |
0.70 |
0.10 |
0.005 |
0.80 |
0.03 |
0.20 |
P460NL2 Mechanical Property
Grade |
Thickness |
Yield |
Tensilmie |
Elongation |
Impact Energy(KV J) min |
||
P460NL2 |
mm |
Min Mpa |
Mpa |
Min % |
-20° |
0° |
+20° |
≤ 16 |
460 |
570-720 |
17 |
65 |
90 |
100 |
|
16> to ≤35 |
450 |
570-720 |
17 |
65 |
90 |
100 |
|
35> to ≤50 |
440 |
570-720 |
17 |
65 |
90 |
100 |
|
50> to ≤70 |
420 |
570-720 |
17 |
65 |
90 |
100 |
|
70> to ≤100 |
400 |
540-710 |
16 |
65 |
90 |
100 |
|
100> to ≤150 |
380 |
520-690 |
16 |
65 |
90 |
100 |

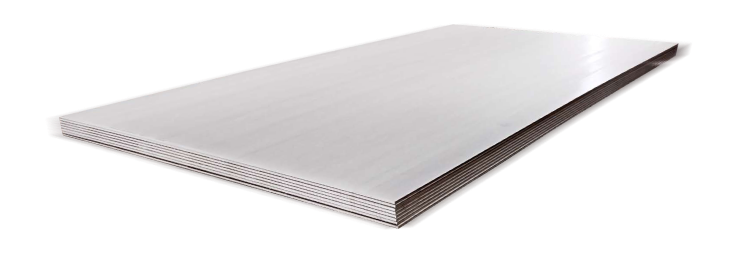

P460NL2 steel plates to EN10028-3 are high strength plates with improved notch toughness that allows them to be used in environments where high strength at low temperature is important. P460NL2 plates are normally used in pressure vessels and reactors in the oil and gas and petrochemical industry
