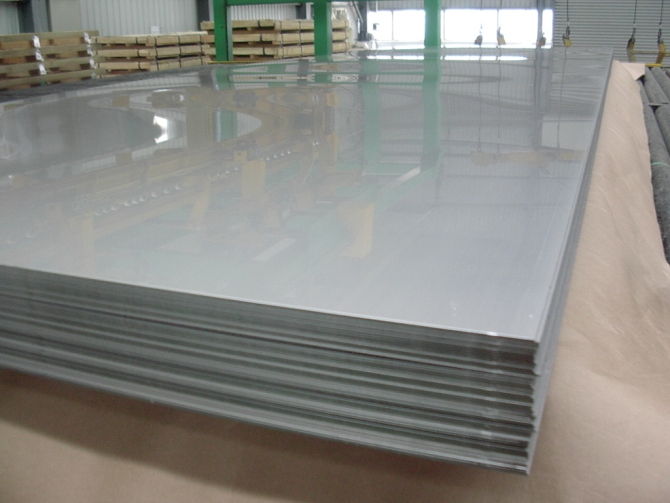

ASTM A387 GRADE 11 CLASS 1,SA387GR11CL1 Pressure Vessel And Boiler Steel Plate
SA387 Grade 11 Class 1 is in the standard ASME SA-387/SA-387M .SA387GR11CL1 Pressure Vessel And Boiler Steel Plate are used in Pressure Vessel,Boiler,Storage Tanks and Heat Exchanger in Oil,Gas Project.
we are specialized in supplying ASTM steel plate in A387 Grade11 Class1.for more information about ASTM A387 GRADE 11 CLASS 1,please check them in following:
Standard: ASME SA-387/SA-387M
Steel Grade : SA387 Grade 11 Class 1
Dimension range we mainly supply:1.5mm -260mm x 1000mm-4000mm x 1000mm-18000mm
Chemical Composition and Mechanical Property:
|
Grade |
Chemical Composition(%) |
||||
|
C |
Mn≥ |
Si |
P |
S |
|
|
SA387 Grade 11 Class1(SA387GR11CL1) |
0.04-0.17 |
0.35-0.73 |
0.44-0.86 |
0.035 |
0.035 |
|
Grade |
Mechanical Property |
|
|||
|
Tensile Strength(MPa) |
Yield Strength(MPa) |
% Elongation in 2 in.(50mm) min |
Impacting Test Temperature(°C) |
|
|
|
SA387 Grade 11 Class1(SA387GR11CL1) |
415-585 |
240 |
22 |
-20,40,-60 |
|
ASME SA387 Grade 11 class 1 pressure vessel steel is widely used in petroleum, chemical industry, power station, boiler, etc,used to make the reactor, heat exchanger, separator, spherical tank, liquefied gas, nuclear reactor pressure vessel, boiler steam drum steam, liquefied petroleum, hydropower station, high pressure pipe.
If you need more stock steel plates in ASTM A387 GRADE 11 CLASS 1,please contact us for more information about price and others,we can give you the best service!
