P235GH Pressure Vessel Steel

Posted:2018-11-30 13:38:01

P235GH material is a carbon(non-alloy) pressure vessel steel defined in the EN 10028-2 standard. It is similar to P265GH but with the lower content of Carbon and on the other hand with higher content of Manganese. It has a moderately low thermal conductivity among wrought carbon or non-alloy steels. In addition, it has a moderately high ductility and a fairly low tensile strength.

P235GH Pressure Vessel Steel
P235GH is the designation alloy in the European standard, also referred to as A285 grade C steel in ASTM A285 / A285M standard. Many manufacturers and traders who sell P235GH also claim to be compliant with specifications of ASME/ASTM material A516 grade 60 steel.

P235GH Pressure Vessel Steel Chemical Composition

Element	% by mass	Element	% by mass
Carbon (C)	≤0.16	Silicon (Si)	≤0.35
Manganese (Mn)	0.60 to 1.20	Phosphorous (P) (max)	0.025
Sulphur (S) (max)	0.015	Aluminium (Al)	≤0.020
Nitrogen (N)	≤0.012	Chromium (Cr)	≤0.30
Copper (Cu)	≤0.30	Molybdenum (Mo)	≤0.08
Niobium (Nb)	≤0.020	Nickel (Ni)	≤0.30
Titanium (Ti) (max)	0.03	Vanadium (Vi)	≤0.02

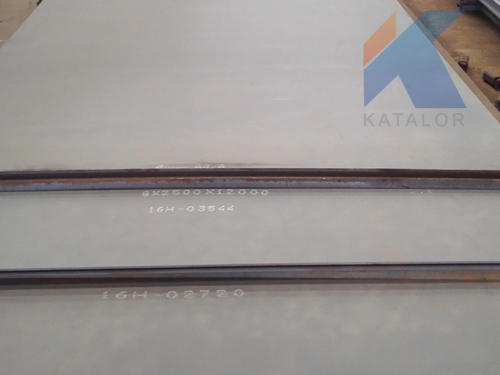

P235GH plates are in stock. Welcome to contact us if you are interested.
