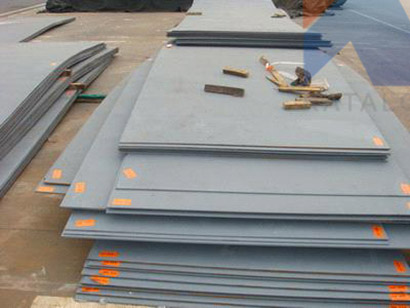

ASME SA516 Grade 70 Pressure Vessel Plates
ASME SA516 Grade 70 steel is a carbon steel pressure vessel plates for moderate- and lower-temperature service. Katalor Industry is a ASME SA516 Grade 70 steel plate manufacturers, SA516 Grade 70 steel suppliers and stockists, delivering to the whole of the world. We have large inventory & ready stock of around 200 tons of SA516 Grade 70 boiler steel, SA516 Grade 70 carbon steel and SA516 Grade 70 pressure vessel plates in different size, grades & cuts.
Common grades: SA516 Grade 55, SA516 Grade 60 , SA516 Grade 65
ASME SA516 Grade 70 Steel Products Specification
Thickness : 3-150mm
Width: 1220-4200mm
Length: 5000-18000mm
Notes: coil thickness ≤ 25mm
ASME SA516 Grade 70 Steel Chemical Requirement
Grade |
Chemical Composition(%) |
||||
C |
Mn |
Si |
P max |
S max |
|
SA516 Grade 70 |
0.27-0.31 |
0.79-1.3 |
0.13-0.45 |
0.035 |
0.035 |
ASME SA516 Grade 70 Steel Mechanical Properties
Grade |
Mechanical Property |
|||
Tensile Strength (ksi)[Mpa] |
Yield Strength |
Elongation in 200mm (%) |
Elongation in 50mm |
|
SA516 Grade 70 |
70-90 [485-620] |
38 [485-620] |
17 |
21 |
Katalor Industry specializes in ASME SA516 Grade 70 steel, ASME SA516 Grade 70 boiler steel, ASME SA516 Grade 70 pressure vessel plates, A516 Grade 70 steel plate and A516 Grade 70 boiler steel. With 25 years of experience in manufacturing SA516 Grade 70 Steel Plate we offer high quality, lower cost but the best service. As a result to that our export account today is in over 45 countries some of them areIran, Saudi Arabia, United Arab Emirates, Singapore, Malaysia We welcome your inquiries.
