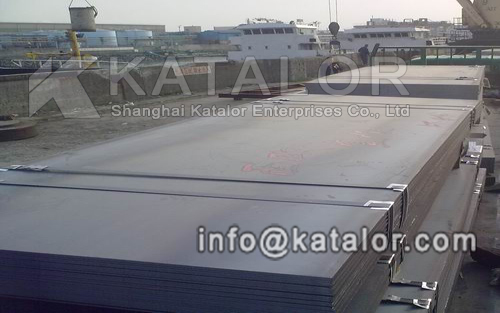

ASME SA516gr70 Steel Plate Mill Test Certification
SA516gr70 is mainly used for boiler and pressure vessel fabrication which is ideally suited to the high standards set by the oil, gas and petrochemical industry. ASME SA516gr70 are also used in Pressure Vessel, Boiler, Storage Tanks and Heat Exchanger in Oil, Gas Project.
Key Words: ASME SA516 Grade 70(SA516GR70) Boiler steel plate, ASME SA516 Grade 70(SA516GR70) Pressure Vessel Steel plate, ASME SA516 Grade 70(SA516GR70) Storage Tanks Steel plate.
Equivalent Specifications and Standards of ASTM A516 Grade 70
Standard |
Description |
ASTM/ASME |
A/SA516 - Grade 70 |
DIN Standard |
- |
British Standard |
BS1501-224-490A/B |
European Norm |
EN10028 P355GH |
Chemical Composition and Mechanical Property:
Grade |
Chemical Composition (%) |
||||
C |
Mn≥ |
Si |
P |
S |
|
SA516 Grade 70(SA516GR70) |
0.27-0.31 |
0.13-0.45 |
0.79-1.30 |
0.035 |
0.035 |
Grade |
Mechanical Property |
|
|||
Tensile Strength(MPa) |
Yield Strength(MPa) |
% Elongation in 2 in.(50mm) min |
Impacting Test Temperature(°C) |
|
|
SA516 Grade 70(SA516GR70) |
485-620 |
260 |
17 |
-20,40,-60 |
|
We are a trusted and reliable brand for our high quality and good manufacturing of ASME SA516gr70 Steel Plate. Our company has been a manufacturer and exporter of SA516gr70 for decades, and has been sold all over the world with favorable price. As a responsible enterprise, we always stick to be your satisfying partner.
