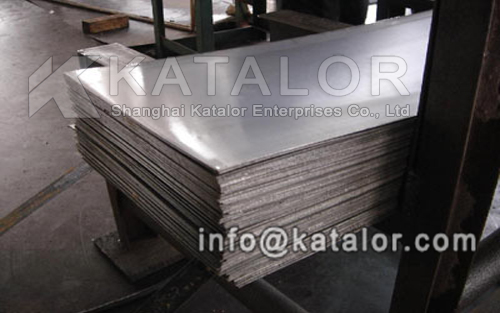

Hot Sale 12Cr1MoV Steel Plate Material
12Cr1MoV Steel Plate is widely used in high-pressure, ultra-high pressure, subcritical power plant boiler set box and the main steam pipe. Compared with 12CrMoV steel, 12Cr1MoV steel has higher oxidation resistance and heat resistance. 12Cr1MoV astm equivalent is 16Mo3 steel.
12Cr1MoV Steel Plate Features
The creep limit of 12Cr1MoV steel is very close to the endurance strength and it has a high plasticity in the case of long-lasting tension. Besides, the process and weld ability of 12Cr1MoV steel is good.
12Cr1MoV Steel Chemical compositions (Ladle analysis) % Max
|
C |
Si |
Mn |
Cr |
Mo |
V |
|
0.08-0.15 |
0.17-0.37 |
0.40-0.70 |
0.90-1.20 |
0.25-0.35 |
0.15-0.30 |
Mechanical properties of 12Cr1MoV
|
|
Mechanical properties |
Impact energy |
|||
|
Yield strength MPa |
Tensile strength MPa |
Section shrinkage ratio % |
Elongation % |
||
|
30 |
≥245 |
≥490 |
≥50 |
≥22 |
≥71 |
The Common sizes of 12Cr1MoV Ex-stock
|
Grade |
size |
Weight（ton） |
|
12Cr1MoV |
8-12*2000-2800*6200-10000 |
6.125T |
|
12Cr1MoV |
20*2000-2700*6400-10800 |
15.254T |
|
12Cr1MoV |
22*2190-2590*8500-10600 |
13.334T |
|
12Cr1MoV |
26*2300-3200*9400-11400 |
19.899T |
|
12Cr1MoV |
30*2300-2900*8600-12000 |
20.192T |
|
12Cr1MoV |
32*2360-3100*7500-10100 |
12.143T |
|
12Cr1MoV |
33-40*2400-3100*8000-12000 |
13.104T |
|
12Cr1MoV |
45*2300-3500*8400-13000 |
25.916T |
|
12Cr1MoV |
46*2000-2800*8000-14000 |
15.853T |
|
12Cr1MoV |
48-60*2210-3100*6600-10750 |
39.956T |
Our company is located in Pudong district of Shanghai city. It is only 30 minutes from Pudong International airport to our company. If you have chance to China, we sincerely invite you to visit us. We will pick you up at the airport if you tell us your schedule. We can take you to visit our steel mill and warehouse. If you have any needs of12Cr1MoV Steel Plate, please feel free to contact us. Hope to build the long term good cooperation with your esteemed company!
