ASME SA387 Grade 11 Class 2 Alloy

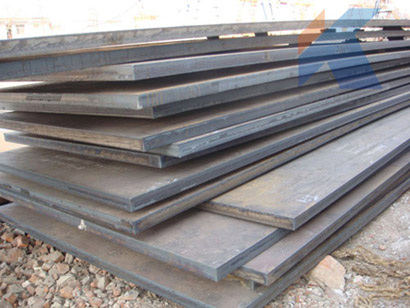

SA387 Grade 11 Class 2 material is a chromium-molybdenum alloy steel plates for welded broilers and pressure vessels designed for elevated temperature service. Katalor Industry is a ASME SA387 Grade 11 Class 2 alloy plate manufacturers, delivering to the whole of the world.We are having largest inventory & ready stock of around 200 tons of SA387 Grade 11 Class 2 boiler steel, SA387 GR.12 CL.2 alloy steel and SA387 Grade 11 Class 1 pressure vessel coils, sheets, and plates in different size, grades & cuts.
Alloy Steel ASME SA387 Grade 11 Class 2 also provide excellent corrosion and oxidation resistance, which is a must in sour gas applications.ASME SA387 Grade 11 Class 2 steel sheets and plates have excellent resistance towards heat, stress-corrosion cracking and corrosive medium. ASME SA387 GR.11 CL.2 coils are easy to machine, stamp and fabricate and can be manufactured to precise tolerances.
ASME SA387 Grade 11 Class 2 Steel Products Specification
Thickness : 3-150mm
Width: 1220-4200mm
Length: 5000-18000mm
Notes: coil thickness ≤ 25mm
ASME SA387 Grade 11 Class 2 Steel Chemical Composition(%):
Grade |
C |
Mn |
Si |
P max |
S |
Cr |
Mo |
SA387 Grade 11 Class2 |
0.04-0.17 |
0.35-0.73 |
0.44-0.86 |
0.035 |
0.035 |
0.94-1.56 |
0.40-0.70 |
ASTM A387 Grade 11 Class2 Steel mechanical properties
Grade |
Tensile Strength(MPa) |
Yield Strength(MPa) min |
% Elongation in 2 in.(50mm) min |
% Elongation in 8 in.(200mm) min |
Impacting Test Temperature(°C) |
SA387 Grade 11 Class2 |
515-690 |
310 |
22 |
18 |
-20,40,-60 |
Katalor Industry specializes in SA387 Grade 11 Class 2 steel, SA387 GR.11 CL.2 boiler steel, SA387 Gr.11 Class 1 pressure vessel plates, and SA387 GR.11 CL.2 boiler steel. With 25 years of experience in manufacturing SA387 Grade 11 Class 2 pressure vessel plate we offer high quality, lower cost but the best service.
